Cinema 4D Viewport Performance Benchmark & Scores (Updated Results)

CGDirector’s Cinema 4D Viewport Performance Benchmark measures how snappy and smooth active work inside your 3D Software will be.

While this benchmark uses Maxon’s Cinema 4D for measuring performance, these scores can (roughly) be applied to other 3D Software as well, as they all utilize the hardware similarly.

In Cinema 4D and most 3D-software, your processor’s single-core performance is responsible for a smooth viewport experience and is rarely bottlenecked by the graphics card.

Every year and with every new version, we revisit Cinema 4D’s Viewport performance. And this year’s Cinema 4D 2024 performance uplift is mind-boggling.

Help us extend the below table with your score in Cinema 4D 2024! 🙂

Cinema 4D Viewport Performance Benchmark Scores

▮ = AMD   |   ▮ = Intel

Because different Cinema 4D Versions have different viewport performance, be sure to filter by your C4D Version in the search bar for best results (e.g. R20 or 2023 or 2024).

OC = Overclocked | DP = Dual Processor (2x CPUs)

How do Cinema 4D Versions stack up against each other?

So, which Cinema 4D version has the fastest viewport? Maxon claims to improve viewport performance with every new version, but is this actually the case?

We ran the Cinema 4D viewport benchmark on the same system in all Versions of Cinema 4D since R20 (AMD Ryzen 5900X@Stock, 128GB RAM CL16-3600, RTX 2080Ti, default Cinema 4D clean-installs).

The results are quite interesting:

Cinema 4D Viewport Performance comparison between Versions

Ignoring the occasional outlier, viewport performance in Cinema 4D has been increasing very slowly, but continually from R20 to 2023. Cinema 4D 2024, especially, almost doubles viewport performance in our benchmark scene!

This also means that in the first scores table above, you should make sure to filter by the Cinema 4D version you’re looking to run to be able to compare CPUs with each other.

Why does the same CPU score differently in different Cinema 4D Versions?

Because the benchmark Scene stays the same no matter which Cinema 4D Version you test it with, the score differences between versions come down to Cinema 4D’s very own software performance improvements.

Every now and then, Maxon implements viewport improvements or refactors some code in new releases which should speed up your viewport. This doesn’t always work, though, as the newest version isn’t always the fastest. The Intel i9 11900k for example, scores much higher when benched in R21 compared to S24, but later versions can flip this ranking upside down.

Download Cinema 4D Viewport Benchmark

Help us extend the scores-list and bench your own hardware. Download the benchmark here and comment with your score:

Cinema4D_ViewportBenchmark_v1.3.c4d

v1.3 Updated on 21.11.2020 – Added Cinema 4D R23 Support and support for any upcoming Cinema Versions.
v1.2 Updated on 20.07.2020 – Added Cinema 4D S22 Support.
v1.1 Updated on 16.09.2019 – Added Cinema 4D R21 Support.

How to use the Benchmark

Open the downloaded Scene in any Version of Cinema 4D that you have installed (Tested on R17 – R23).

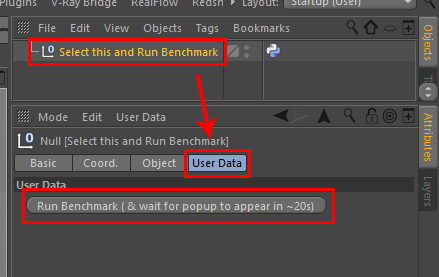

Select the Null-Object in the Object Manager (you might also have to click “User-Data”) and click “Run Benchmark”.

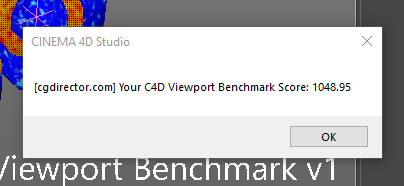

After a few moments (depending on the performance of your machine) you will see a popup window displaying your score.

That’s it! Let us know your Score, CPU-Name, Clock-Speed and C4D Version in the comments, so we can add it to the score list. Thanks! 🙂

How does this Benchmark work?

In many of our articles, we discuss two general types of CPUs:

• 1: A CPU with a lot of Cores but usually lower Clock-Speed (e.g. 64-Core 3990X @ 2.9 GHz Base, 4,3Ghz Turbo Clock)
• 2: A CPU with usually fewer Cores but high Clock-Speed (e.g. Intel 24-Core i9 13900K @ 3,0Ghz Base, 5,8 GHz Turbo Clock)

For Rendering and other tasks that can be easily parallelized, we need a CPU with many Cores but for active work, we need a CPU that Clocks very high (or has high IPC = Instructions per Cycle).

Usually, we use the Cinebench Single-Core Score to estimate how smoothly a CPU would perform when actively working in 3D Applications, but this Score is obtained by benching the Rendering Performance and doesn’t represent active work- and viewport-performance well.

So we need a new Benchmark.

A viewport performance benchmark. With this, we can measure how fast our 3D Viewport will be, as we want to work with as little delay & lagg as possible.

No delays at all, optimally.

As discussed in many of our Articles, the Viewport performance in most cases depends on the IPC and Clock of the CPU, and not the performance of the Graphics Card.

In some cases, of course, the GPU can bottleneck the performance, but those are very rare.

This usually occurs only when using GPU OpenGL Effects like extreme Anti-Aliasing, SSAO, Real-time Shadows or other Viewport Effects (Which, in my experience as a 3D Artist, are usually turned off). Or when you have an underpowered GPU compared to the rest of your components.

In this Cinema 4D Viewport Benchmark, we measure the Frames per Second (FPS) of a typical Scene that uses common 3D Objects from Cinema 4D Objects in a hierarchy.

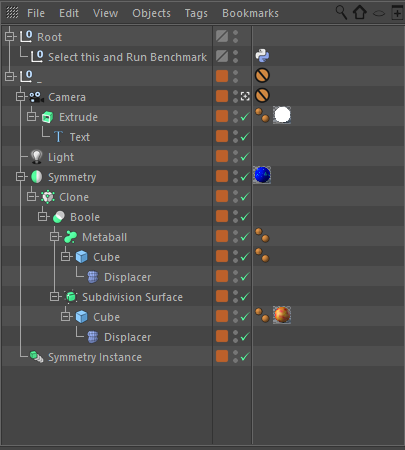

CGDirector’s Cinema 4D Viewport Performance Benchmark – Scene contents

The CPU has to step through this hierarchy one at a time, without being able to offload Calculations to other Cores – as is the case in almost any typical 3D Scene.

These metrics can very well be transferred to other 3D Applications too, as they all use the Computer’s resources in very similar ways.

Over to you

That’s about it! Let us know the following in the comments, so we can add it to the scores-list. Thanks! 🙂

1. Score
2. Cinema 4D Version
3. CPU-Name
4. (and Clock-Speed, if it has been overclocked)
